Tyrolia

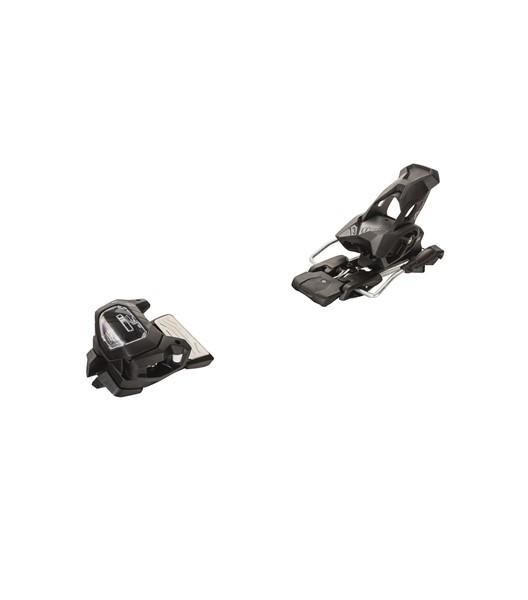

Attack 13 GW W/O BR(A)

DATA MODEL



Target group

---



Ramp angle (mm)

2-5



DIN-setting (Z)

4-13



Bodyweight (kg)

from 42



Bodyweight (lbs)

from 92



Set weight (g)

1770 (2070)



Mounting jig

92 W / 92 FAT



Feature

---



DATA TOE



Toe type

FR PRO�

Toe system

---



AFD



AFD metal

Stand height (mm)

12-15

Material housing

GFK

Material pincer

GFK

Elast. horiz. (mm)

30

Elast. vert. (mm)

5

Length adj. range (mm)

---



DATA HEEL



Heel type

NX FR

Heel system

Standard

Brake and [Brake Code]

w/o Brake [A]



Stand height (mm)

17,0



Material housing

GFK



Material heel lug

GFK



Length elast. (mm)

12



Vert. elast. (mm)

16



Length adj. range (mm)

32



BOOT SOLE RANGE (MM)



---



BOOT SOLE STANDARD



A / G
